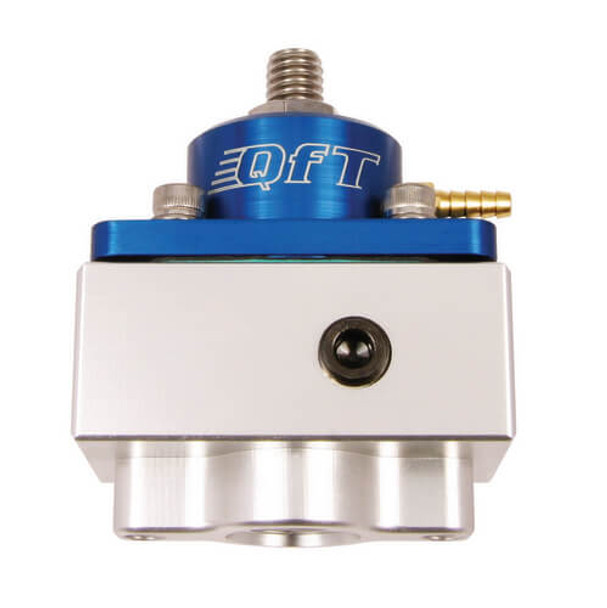

Billet Bypass Regulator

Billet Bypass Regulator

Billet Bypass Regulator W/Jet – Designed for sue with a mechanical fuel pump where fuel pressure is variable. Bypass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure.

Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware.

8AN O-ring fittings required.

Designed to operate within 4.5-9 PSI; Preset at 7 PSI .350″ (7/20″) restriction

Designed for use with alcohol fuel

Compatible with QFT billet fuel pressure regulator logs

Includes an 1/8″ NPT port for manifold reference Boost Reference 1-1
