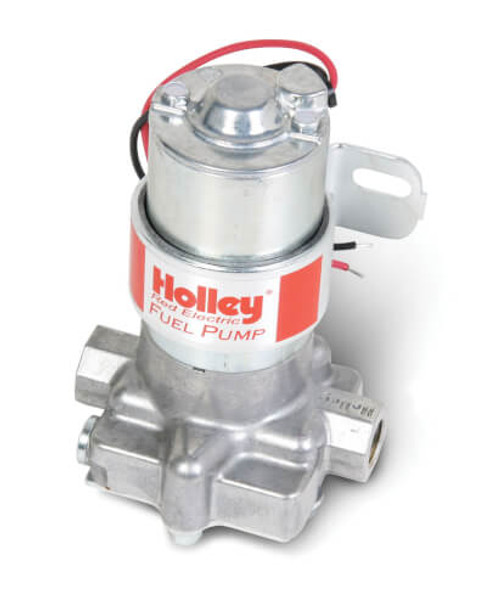

Holley Red Electric Fuel Pump

Holley Red Electric Fuel Pump

Street/Strip Carbureted Applications Compatible with Gasoline only

The world famous Red, Blue, and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.

• Tumble polished billet look
• Lower housing casting designed for enhanced fuel flow
• maximum pressure is 7 PSI
• Motor draws 2 amps current
• Relay kit #12-753 and 7 1/2 amp fuse recommended
• Constant fuel flow with no pulsation
• Improved designed for street/strip applications
• Not designed to be used on aircraft of any type
• Distinctive “Red” logo
• Flows 97 GPH free flow
• Flows 71 GPH at 4 PSI
• Regulator is not required
• Has externally accessible pressure relief valve (max 7 PSI)
• Rotor/Vane pump design is more tolerant of contaminated fuels
• Weighs only 2.88 pounds
• Not designed or recommended for use with fuel injection systems
• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end
• Not compatible with alcohol and methanol fuels
• Use of safety shut-off switch #12-810 strongly recommended
